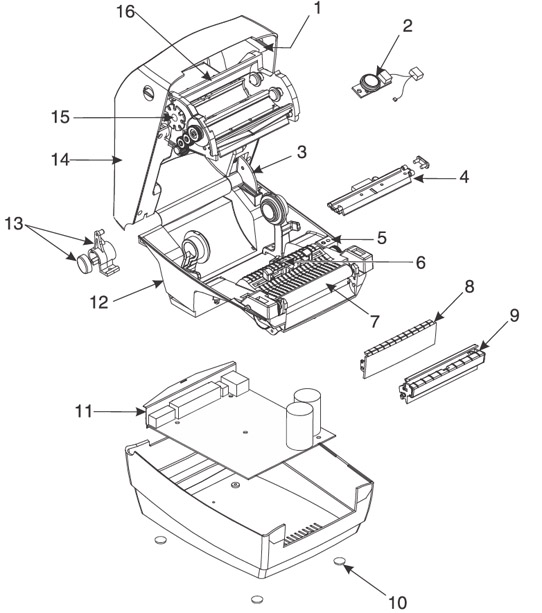

| 1 |
Latch Assy. |
105910-052 |
| 2 |
Feed Switch/Sensor Assy. |
G105910-064 |
| 3 |
Upper Cover Support |
G105910-066 |
| 4 |
Printhead Assy., (203 dpi) |
G105910-053 |
| 4 |
Print Head Cable Assy. |
105910-065 |
| 5 |
Head Up Sensor G105910-072 |
G105916-015 |
| 6 |
Gap/Blackline Sensor PCBA |
P1012845-002 |
| 7 |
Platen Kit, std. |
105910-055 |
| 8 |
Front Bezel, std. |
105910-057 |
| 9 |
Front Bezel, Dispenser |
P1031815-013 |
| 9 |
Label Taken Sensor PCBA |
P1031815-012 |
| 10 |
Rubber Foot Kit |
105910-007 |
| 11 |
Main Control PCBA,Ser/USB/Par |
P1031815-019 |
| 11 |
Main Control PCBA,
Ethernet/USB, Cutter |
P1031815-020 |
| 12 |
Lower Frame Assy. |
P1031815-014 |
| 13 |
Cover Hinge |
G105910-074 |
| 14 |
Upper Cover Assy. |
P1031815-015 |
| 15 |
Ribbon Out Sensor |
G105910-067 |
| 16 |
Ribbon Carriage w/o print head |
G105910-061 |
|
Not shown |
|
|
Motor |
G105910-051 |
|
Nameplate GC420t |
P1031815-022 |
|
Power Supply, 60W, 20V, with US Cord |
P1012845-011 |
|
Power Supply, 60W, 20V, with US Cord |
FSP50-11 |
|
|
|
|
|
|
|
 |
