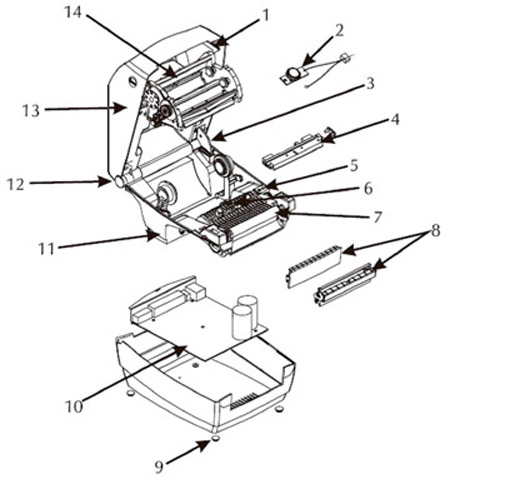

Peças Tlp 2844/ 2844 Z/ 3842/ 3844                    loja lservice

1Latch Assy. 105910-052  TLP 2844/ TLP 2844 Z/ 384X/ GC420T
2 Feed Switch / Sensor Assy. G105910-064 TLP 2844/ 384X/ GC420T
3 Upper Cover Support G105910-066   TLP 2844/2844 Z/ 384X/ GC420
4 Printhead Assy., (203 dpi) G105910-053
4 Print Head Cable Assy. 105910-065
5 Head Up Sensor G105910-072   G105916-015
6 Gap / Blackline Sensor PCBA G105910-054
7 Platen Kit, std.105910-055
8 Front Bezel, std. 105910-057
8 Front Bezel, Dispenser G105910-022
   Label Taken Sensor PCBA G105910-013
9 Rubber Foot Kit 105910-007
10 Main Control PCBA, Par./RS-232/USB,G105910-050
10 Main Control PCBA, Ethernet ready/RS-232/USB,   G105910-122
10 Kit, Ethernet IO PCBA with cables    G105910-121
10 Kit, PrintServerII Daughter Board    G105910-123
10 Kit, 4 Ethernet Back Panel    G105910-124
10 Real Time Clock / Date I.C.   G105950-026
11 Bottom Frame Assy.     G105910-071
12 Cover Hinge    G105910-074
13 Upper Cover Assy. G105910-060
14 Ribbon Out Sensor G105910-067
00 Ribbon Carriage w/o Printhead G105910-061
00 Motor, Assy. G105910-051

G105910-028 KIT CUTTER TLP 2844/ 3842
105903-053 NÚCLEO DO RIBBON TLP 2844/ TLP 2844 Z/ 3842/ 3844
G105916-030 KIT SENSOR BOTÃO DE AVANÇO TLP 2844 Z/ 3844
G105916-015 SENSOR DE CABEÇA TLP 2844 Z/ 3844/ GC420T
G105916-003 MOLDURA DISTRIBUIDOR FRONTAL TLP 2844 Z/ 3844
G105916-001 SENSOR DE RETIRADA DE ETIQUETA TLP 2844 Z/ 3844
G105916-004 PLACA PRINCIPAL TLP 2844 Z STD SERIAL/PARALELA/USB
G105916-005 PLACA PRINCIPAL TLP 2844 Z STD MEMORY,SERIAL/REDE/USB
G105916-006 PLACA PRINCIPAL TLP 2844 Z FULL MEMORY,SERIAL/PARALELA/USB
G105916-007 PLACA PRINCIPAL TLP 2844 Z FULL MEMORY,SERIAL/REDE/USB
G105950-056 FUSÍVEL DE PROTEÇÃO INTERFACE TLP 2844 Z/ 3844
G105950-003 BATERIA 3V LITHIUM TLP 2844 Z/ 3844
G105916-027 QUADRO SUPORTE INFERIOR - TLP 2844 Z
G105916-028 SENSOR DO RIBBON TLP 2844 Z/ 3844
G105916-029 KIT DO MECANISMO DE TRAÇÃO DO RIBBON TLP 2844 Z/ 3844
G105910-155 CABEÇA DE IMPRESSÃO (PRINTHEAD 300 DPI) TLP 3842/ 3844
G105916-009 PLACA PRINCIPAL STD MEMORY SERIAL/PARALELA/USB TLP 3844
G105916-010 PLACA PRINCIPAL STD MEMORY SERIAL/REDE/USB TLP 3844
G105916-011 PLACA PRINCIPAL FULL MEMORY SERIAL/PARALELA/USB TLP 3844
G105916-012 PLACA PRINCIPAL FULL MEMORY SERIAL/REDE/USB TLP 3844
G105916-031 QUADRO SUPORTE INFERIOR TLP 3844
